Civic Type R Dimensions: FK8 vs FL5 Length, Width, Height & Wheelbase
A practical FK8 vs FL5 dimension comparison covering length, width, height, wheelbase, ground clearance, track width and what those numbers actually mean for parking, wheels and suspension work.
Civic Type R Dimensions at a Glance
The FK8 and FL5 are both five-door Civic Type R hatchbacks, but their exterior dimensions are not identical. Honda lists the 2021 FK8 at 179.4 inches long, 73.9 inches wide, 56.5 inches tall and a 106.3-inch wheelbase. The current FL5 is 180.9 inches long, 74.4 inches wide, 55.4 inches tall and uses a 107.7-inch wheelbase. Those are small-looking changes on paper, but they matter when you are measuring a garage, comparing stance or planning a wheel and suspension setup.

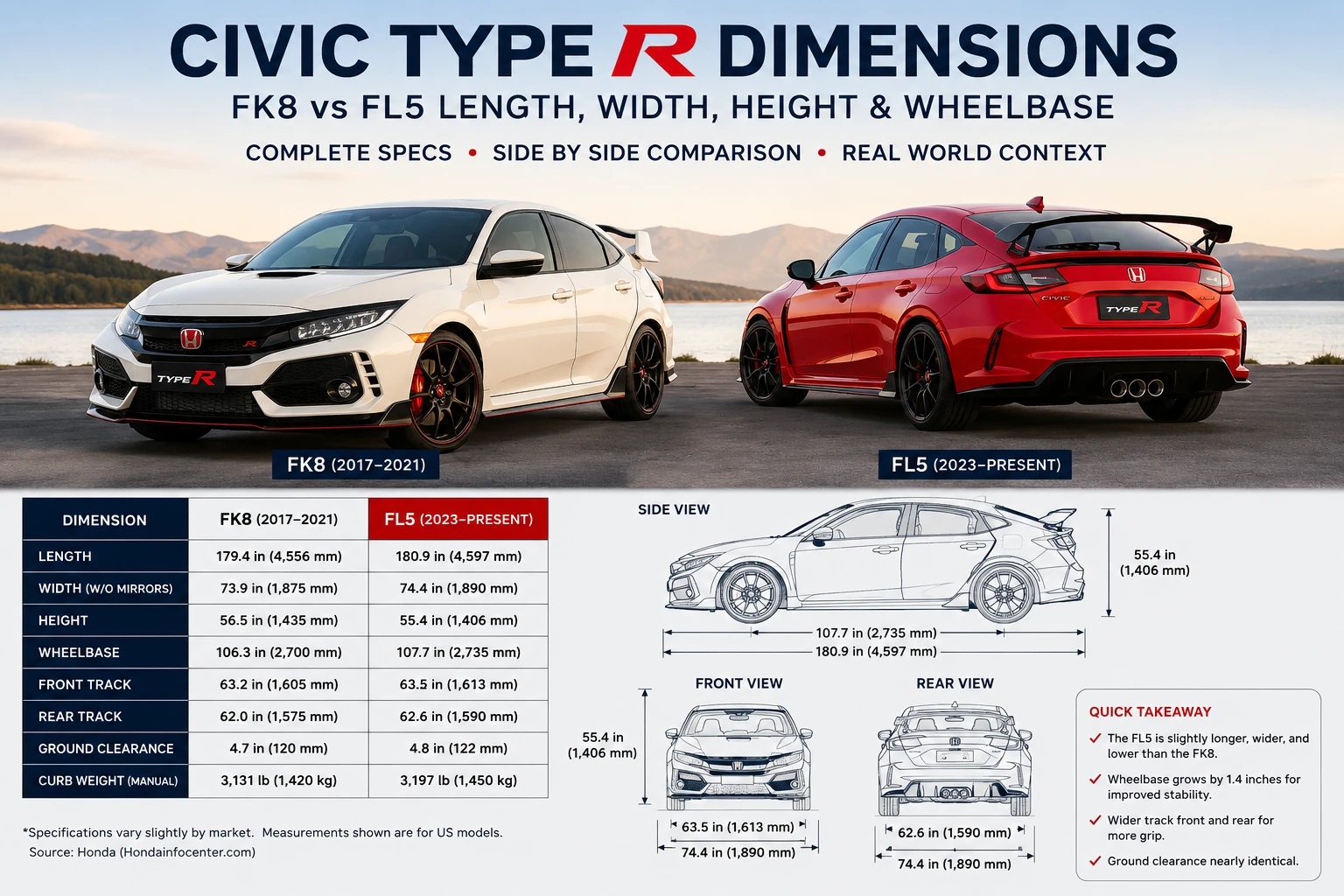

| Dimension | FK8 | FL5 | Why it matters |
|---|---|---|---|
| Length | 179.4 in | 180.9 in | Parking space and garage depth |
| Width | 73.9 in | 74.4 in | Garage clearance and road position |
| Height | 56.5 in | 55.4 in | Garage clearance and ride-height context |
| Wheelbase | 106.3 in | 107.7 in | Overall proportions and axle spacing |
| Ground clearance | Check model-specific documentation | 4.8 in | Important for ramps, lips and lowered setups |
| Front/rear track | 63.0 / 62.7 in | 64.0 / 63.5 in | Useful when thinking about stance and wheel position |
Source note: FK8 figures above use Honda's 2021 Type R specifications, which represent the later FK8 model. Honda's 2017 facts guide gives the same 179.4-inch length, 73.9-inch width, 56.5-inch height and 106.3-inch wheelbase for the U.S.-market Type R. The FL5 figures come from Honda's current Type R specifications. Always use the specifications for your exact model year when a measurement is safety- or fitment-critical.
FK8 Dimensions: What Owners Need to Know
The FK8 measures 179.4 inches from end to end, with a 73.9-inch overall width and 56.5-inch height in Honda's published specifications. Its 106.3-inch wheelbase is shared with the underlying Civic platform dimensions, but the Type R's bodywork, wider track and performance hardware give the car a very different visual and mechanical footprint from a regular Civic hatchback.
For a modified FK8, the factory body dimensions are only the starting point. Wheel width, offset, tire section width and suspension changes can make the effective footprint wider than the body measurement suggests. A wheel that moves outward can reduce fender clearance even though the car's official width has not changed. That is why the FK8 wheel fitment guide and Type R wheel offset guide should be used alongside the factory dimensions.
FL5 Dimensions: What Changed?
Honda lists the FL5 at 180.9 inches long, 74.4 inches wide and 55.4 inches tall, with a 107.7-inch wheelbase. Compared with the later FK8 figures, the FL5 is 1.5 inches longer, 0.5 inch wider, 1.1 inches lower and 1.4 inches longer between the axles. Honda also lists a 64.0-inch front track and 63.5-inch rear track for the FL5.
Those differences are useful when comparing the generations, but they should not be interpreted as a simple rule that the FL5 will feel exactly 1.4 inches longer on every road or parking space. Body shape, mirrors, parking angles and the way a car is positioned all affect real-world clearance.
Length: How Long Is a Civic Type R?
The later FK8 is 179.4 inches long, while the FL5 is 180.9 inches. That 1.5-inch difference is small enough that both cars fit the same broad category of compact performance hatchback, but it is worth accounting for when a garage is tight front-to-back.
If you are measuring a parking space, do not use the vehicle length as your only measurement. Leave additional room for the garage door, wall protection, walking space and the way you enter the vehicle. Honda itself recommends comparing the published vehicle length, width and height against the actual dimensions of your garage or parking space. Honda's garage-fit guidance
Width: How Wide Is a Civic Type R?
The FK8 is 73.9 inches wide in Honda's specifications, while the FL5 is 74.4 inches. Remember that an official body-width measurement is not the same thing as the widest point of a modified car. Aftermarket wheels with a more aggressive offset, wider tires, spacers or aero components can change the practical clearance you need.
For garage planning, measure the narrowest part of the entrance rather than assuming the door opening matches the garage's interior width. For a modified car, measure from the actual tire or wheel at its widest relevant point and allow room for mirrors and door opening.
Height and Ground Clearance
The FK8 is 56.5 inches tall in Honda's 2021 specification, while the FL5 is 55.4 inches. The FL5's published ground clearance is 4.8 inches. A vehicle's overall height and ground clearance are different measurements: height tells you how tall the car is, while ground clearance tells you how much space exists between the lowest relevant part of the vehicle and the road.
Ground clearance becomes more important after suspension changes. Lowering springs, coilovers, a front splitter or other low-mounted parts can reduce the practical clearance available at driveways and ramps even if the car's official factory dimensions remain unchanged. If you lower a Type R, re-check clearance at full steering lock and over the ramps or roads you actually use.
Wheelbase and Track Width
Wheelbase is the distance between the front and rear axle centers. Honda lists 106.3 inches for the FK8 and 107.7 inches for the FL5. A longer wheelbase changes the relationship between the axles and the body, but it does not by itself tell you how a modified car will handle.
Track width is the distance between the left and right wheel centers across an axle. Honda lists the FL5 at 64.0 inches front and 63.5 inches rear, while the later FK8 is listed at 63.0 and 62.7 inches. Wheel offset changes the position of the wheel relative to the hub, so an aftermarket setup can alter the wheel's relationship to the fender and suspension without changing the manufacturer's track specification.
FK8 vs FL5: Which Is Bigger?
In simple exterior terms, the FL5 is longer and wider than the later FK8, but it is also lower. Its wheelbase is longer as well. The differences are not large enough to turn one car into a completely different size class, but they are meaningful when you are comparing fitment, garage space and stance.
| Question | FK8 | FL5 |
|---|---|---|
| Longer? | Shorter | Yes — 1.5 in longer |
| Wider? | Narrower | Yes — 0.5 in wider |
| Taller? | Yes — 1.1 in taller | Lower |
| Longer wheelbase? | 106.3 in | 107.7 in |
Do Dimensions Matter for Wheel Fitment?
Yes, but not in the way many wheel shoppers expect. The official body dimensions help describe the car, while wheel fitment depends on the hub, bolt pattern, wheel width, offset, brake clearance, tire size and suspension position. Two wheels with the same diameter can have very different clearances.
For that reason, use this dimensions page as a reference and then move into the more specific fitment resources: the Civic Type R Wheels Guide for choosing a setup, the wheel width guide for width decisions, and the Type R tire-size guide for tire dimensions.
Dimensions and Suspension Modifications
Installing springs or coilovers does not change the published factory length and width figures. What changes is the car's ride height and the position of the suspension and wheel relative to the body. That can affect ground clearance, fender clearance and how much room you have around the tire at compression or steering lock.
On a lowered Type R, do not use the factory ground-clearance number as a guarantee. Measure your actual car after the suspension is installed and loaded as you normally drive it. Alignment also matters because camber changes can alter the tire's relationship to the fender.
Garage and Parking-Space Planning
If the purpose of your research is simply to know whether a Type R will fit somewhere, start with length, width and height, then measure the actual opening. The FL5's 180.9-inch length and 74.4-inch width should be treated as planning numbers, not the amount of space you should leave between the car and a wall.
- Measure the garage door opening, not just the interior.
- Check ceiling clearance if you use a lift or storage system.
- Leave enough side clearance to open doors comfortably.
- Account for mirrors and the way you approach the space.
- If the car is lowered, check the ramp angle and lowest point separately.
Common Dimension Mistakes
FK8 Length: The Number Owners Usually Need First
When someone searches for “FK8 length,” they are often trying to answer a practical question rather than satisfy curiosity about a specification sheet. Garage depth, parking spaces, trailer positioning and tight urban parking all depend on the car's overall footprint, not just its wheelbase.
Use the factory dimension data in this guide as the starting point, then leave additional margin for mirrors, doors, ramps and the way the car sits after suspension or wheel changes. A lowered car may have the same overall length but require more care when entering a steep driveway or garage ramp.
Dimensions vs Wheel and Tire Fitment
Overall length and width do not tell you whether an aftermarket wheel will fit. Wheel width, offset, tire section width, sidewall height and brake clearance are the measurements that become important when you change wheels. That's why this article should be used alongside the FK8 wheel-fitment guide and Type R wheel-offset guide.
Why FK8 Length Matters When Planning a Garage or Lift
Knowing the overall footprint is useful when a Type R is being modified because the usable space around the car matters as much as the published vehicle dimension. Leave room for opening the hatch and doors, walking around the car and safely positioning a jack or lift. A car that technically fits a garage can still be awkward to work on if there is no working clearance around it.
For lowered cars, also consider approach and departure angles at the garage entrance. Suspension changes do not change the published body length, but they can change how easily the car clears a ramp or driveway transition.
Frequently Asked Questions
How long is the FK8 Civic Type R?
Honda lists the later FK8 at 179.4 inches long.
How wide is the FL5 Civic Type R?
Honda lists the FL5 at 74.4 inches wide.
How tall is the FL5 Civic Type R?
Honda lists the FL5 at 55.4 inches tall and 4.8 inches of ground clearance.
Is the FL5 bigger than the FK8?
It is slightly longer and wider, with a longer wheelbase, while being lower overall.
Does wheel size change the car's dimensions?
Wheel diameter alone does not change the published body dimensions. A different wheel and tire package can, however, change ride height, tire position and practical clearance.
Conclusion
The Civic Type R is still a compact hatchback, but the FK8 and FL5 have meaningful dimensional differences. The later FK8 is 179.4 inches long, 73.9 inches wide and 56.5 inches tall, while the FL5 is 180.9 inches long, 74.4 inches wide and 55.4 inches tall. The FL5 also stretches the wheelbase from 106.3 to 107.7 inches.
Use those numbers for vehicle planning, then switch to the appropriate wheel, tire and suspension guides for modification decisions. Dimensions tell you the size of the car; complete fitment measurements tell you whether a specific modification works.
Sources & verification
Primary factory specifications: Honda 2021 Civic Type R specifications and Honda current Civic Type R specifications. Honda's published garage guidance recommends comparing vehicle dimensions with the actual garage or parking-space dimensions.
