10th-Gen Civic Extended Wheel Studs & 5mm Spacers
What to check before installing extended studs and small spacers — including rear vs front clearance, dust-shield access, stud dimensions and thread engagement.
ModManual TeamUpdated August 18, 2026Civic Extended Wheel Studs & Spacers

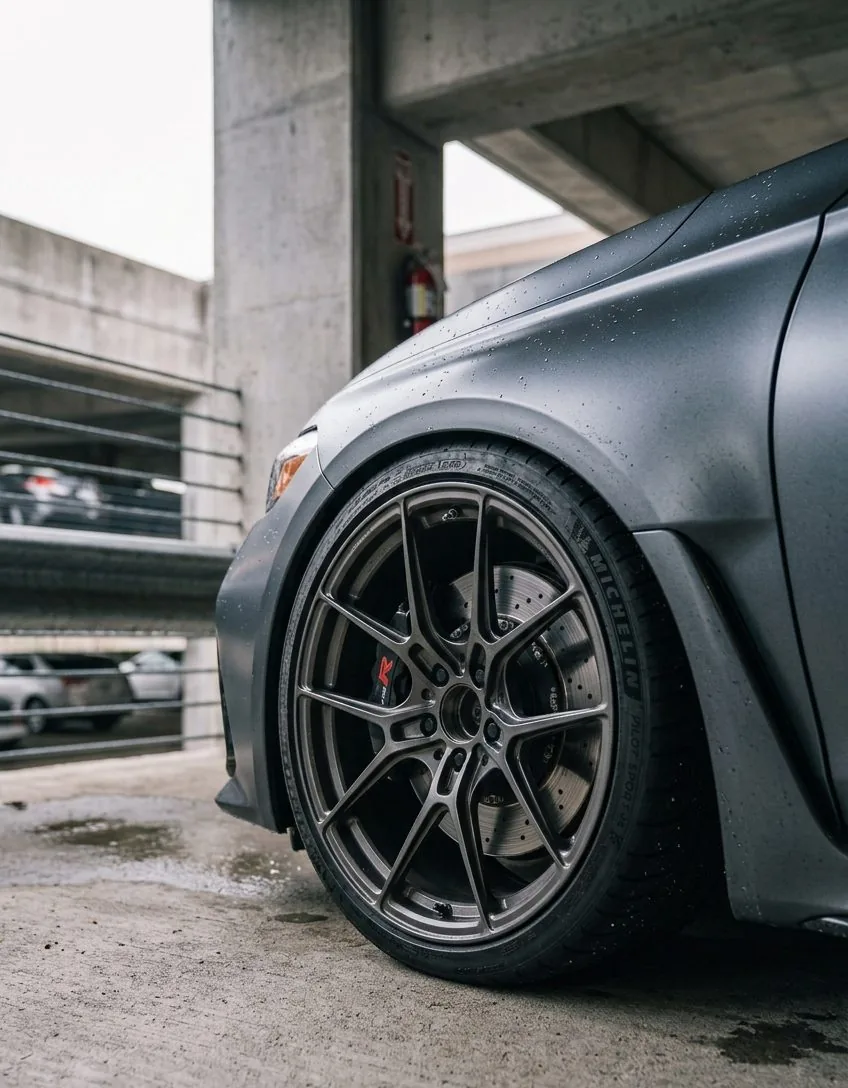

A small spacer still needs the right stud dimensions, seating and thread engagement.
Start With the Stud, Not the Spacer
A 5 mm spacer sounds small, and mechanically it is. The important part is that the spacer still changes the relationship between the wheel, the hub and the wheel studs. Once you add a spacer, you need to confirm that the wheel is still supported correctly and that the replacement studs are long enough for the new stack.
For a 10th-generation Civic, do not buy an extended stud from a listing that only says “fits Civic.” The stud has to match the hub's knurl diameter, knurl length, thread size and usable length. ARP's own wheel-stud guidance stresses that the knurl-to-hub interference fit is what prevents the stud from spinning in the hub. The correct dimensions are application-specific, not something to estimate from the old stud by eye.
Why 5 mm Still Matters
A spacer moves the wheel mounting face outward by the spacer thickness. That can help with inner clearance, but it also changes the wheel's position relative to the fender and suspension. A 5 mm spacer therefore is not a free clearance upgrade: it trades some inner clearance for a little more outer position.
The other issue is thread engagement. With the wheel sitting 5 mm farther from the hub, the original studs have less usable thread inside the wheel nut. Whether that is acceptable depends on the wheel, nut and stud design. Extended studs are intended to restore the engagement margin, but the correct replacement still needs to be verified for the exact hub and wheel.
Rear Stud Replacement: Why Clearance Is the First Question
On the rear, the practical question is usually not whether the whole hub must come apart. It is whether the OEM stud can be moved through the available space behind the hub and whether the replacement stud's head and shoulder can be positioned the same way. The dust shield and surrounding suspension parts can limit that movement.
That means the safest approach is to remove the wheel and rotor, rotate the hub and inspect the available opening before assuming a stud will slide straight out. If the stud head cannot clear the shield or knuckle, moving the shield or using the service procedure specified for your exact chassis is preferable to forcing the part through.
Front and Rear Are Not Automatically the Same
Do not assume a rear-stud method will work at the front. The brake package, hub carrier, dust shield and available access can be different, and the FK8 Type R's large front brakes make packaging especially important. A part that physically fits the hub can still be awkward to install in the car.
What to Verify on the Extended Stud
Thread size and pitch: match the Civic hub and your wheel nuts exactly.
Knurl diameter: the press-fit portion must match the hub's specified interference range.
Knurl length: it needs to engage the hub correctly without creating a clearance problem behind the hub.
Usable thread length: account for the 5 mm spacer, wheel mounting pad and the nut's engagement.
Under-head/shoulder clearance: the stud must seat fully without interference from the hub or brake hardware.
Wheel-nut compatibility: extended studs do not make an incompatible nut or wheel safe.
Do Not Use the Lug Nut as a Universal Stud-Installation Tool
This is an area where forum shortcuts can be misleading. ARP specifically discusses the importance of the correct interference fit and proper installation of its wheel studs. If the stud manufacturer provides a pressing or seating procedure for your part, follow that procedure. Do not improvise a high-force installation method simply because the stud appears to be entering the hole.
After installation, the stud should be fully seated and the wheel should sit flat against the spacer or hub face. A stud that is partly seated can make the assembly look correct from the wheel side while leaving the wheel clamping system in an unsafe condition.
5 mm Spacer Checklist
Confirm the spacer is the correct hub-centric design for the Civic application if a hub-centric spacer is specified for your setup.
Check that the spacer and wheel mounting faces are clean and flat.
Verify that the replacement studs are approved for the exact hub and wheel-nut application.
Measure available thread engagement with the spacer installed rather than guessing from stud length.
Turn the steering and inspect clearance at the front; at the rear, inspect the full suspension movement available to your setup.
Recheck wheel-nut torque using the vehicle and wheel manufacturer's instructions after installation.
After a short drive, recheck the installation according to the wheel/stud manufacturer's guidance.
When Hub Removal May Be the Better Choice
If the stud cannot be removed or seated without contacting the dust shield, knuckle or bearing area, stop and use the appropriate service procedure. Removing a hub to gain clean access is preferable to bending a shield, striking a bearing, damaging the stud threads or installing a part that is not fully seated.
This is also the point where an experienced shop can save time. The job is straightforward when the dimensions and access are right; it becomes a different job when the particular stud requires hub removal or a special installation tool.
The Bottom Line
A 5 mm spacer does not automatically require a hub teardown on a 10th-gen Civic, but neither should you assume every extended ARP stud can be installed in place. The exact stud dimensions, rear or front hardware and available clearance determine the procedure. Treat the stud as a structural wheel-fastening component, not as a cosmetic spacer accessory.
ModManual safety note: This guide is a fitment and inspection framework, not a substitute for the vehicle service manual or the exact stud manufacturer's installation instructions. If you cannot verify the stud's knurl dimensions, thread engagement and full seating for your hub, do not install it.
Practical modification guides for Honda Civic, Ford F-150 and Chevy Silverado owners. Technical claims are qualified when fitment or application varies.
Hasport and Honda-specific service information should take precedence over forum anecdotes. Owner installation reports were used here to describe common clearance experiences, not to establish a universal installation procedure. See the CivicX extended-stud discussion and CivicX DIY installation discussion for the owner-reported methods.
If you are unsure whether a particular ARP or other aftermarket stud fits your Civic, give the exact part number and chassis to the manufacturer or a reputable Honda specialist before installation. That is safer than modifying the hub or knuckle to make an unknown stud fit.
For a 10th-gen Civic running a modest 5 mm rear spacer, extended studs can make sense, but the stud should be selected from the exact dimensions rather than from spacer thickness alone. The rear is generally the easier end for an in-place installation, with the dust shield and hub position being the main clearance considerations. The front can require substantially more disassembly.
Bottom Line
If the installation requires pressing a hub or bearing apart, follow the appropriate service procedure and replace any one-time-use hardware or damaged bearing components as required. This is not an area where saving an hour is worth compromising the wheel attachment system.
For the rear, owner experience suggests that a complete hub teardown is often unnecessary when the correct clearance position is available. For the front, the answer is much more dependent on the chassis, hub design and exact stud. A forum post can show that one person completed the job in place; it cannot guarantee that the same method is appropriate for your hardware.
Should You Remove the Hub?
Check
What to verify
Stud application
Exact Civic hub and exact aftermarket stud dimensions
Spacer fit
Hub-centric fit and correct bore/PCD for the vehicle
Thread engagement
Adequate engagement with the actual wheel and lug nut
Stud seating
Knurled section fully seated against the hub
Wheel clearance
Wheel, caliper and suspension clearance after installation
Torque
Use the vehicle/fastener manufacturer's applicable torque specification
Spacer Safety Checks Before Driving
Front clearance can be more restrictive. If the stud cannot be maneuvered through the available opening, the correct solution may involve hub or bearing removal rather than forcing the hardware into place.
The rear dust shield is one of the main reasons the job can look impossible when the hub is sitting in the wrong position. Several 10th-gen Civic owners report gaining the required access by loosening the shield and rotating it. That is preferable to cutting or permanently modifying the shield simply because the hub has not been positioned for clearance.
What About the Dust Shield?
After installation, inspect the back of every stud for full seating and verify that the wheel and spacer are compatible with the available thread engagement. With a 5 mm spacer, you still need sufficient engagement for the actual wheel and lug-nut combination. Do not assume that “5 mm is small” means every wheel has enough thread automatically.
An extended stud is not properly installed merely because the threads protrude through the hub. The stud's knurled section needs to be fully seated in the hub. An incompletely seated stud can allow movement and compromise the wheel fastening system.
Why Stud Seating Matters
This is based on owner-documented installations, not a claim that every Civic or every aftermarket stud can be installed this way. If the replacement stud physically cannot clear the shield or knuckle, do not grind structural hub or knuckle material just to force the installation.
Remove the wheel and rear brake components required to access the rotor.
Remove the rotor so the wheel hub and dust shield are accessible.
Loosen the rear dust-shield hardware if needed so the shield can be repositioned.
Rotate the hub to find the opening that gives the factory stud clearance.
Work one stud at a time and compare the new stud with the old one before pressing it in.
Seat the replacement stud squarely against the hub using a method appropriate for the stud and hub manufacturer guidance.
Rear Installation: What the Owner Reports Show
Do not choose a stud simply because it is described as an “extended Civic stud.” The 10th-gen Civic range includes different chassis and brake configurations, and aftermarket studs are sold in many dimensions. The exact application matters.
A 5 mm spacer moves the wheel mounting surface outward by 5 mm. That does not automatically tell you whether a particular extended stud is correct. Before ordering anything, confirm the stud's spline diameter, knurl dimensions, overall length, threaded length and head shape against the Civic hub and the wheel/spacer combination.
For a 5 mm Spacer, Start With the Hardware
The front is a different story. Clearance around the front hub and knuckle can make extended-stud installation substantially more involved. Some owners have reported ways to do it with the hub on the car, while others removed the hub or bearing assembly. Those experiences are not a substitute for the service procedure or the dimensions of the exact stud you are installing.
Owner reports on the 10th-gen Civic consistently point to the rear being the easier end. In CivicX discussions, owners describe removing the rear rotor and loosening the rear dust shield so the hub can be rotated into a position that gives the factory stud enough room to come out and the replacement stud enough room to go in. One 2023 10th-gen Civic Si owner described the rear extended-stud installation as straightforward after removing the rear caliper, rotor and dust-shield bolts.
Rear and Front Are Not the Same Job
If you are adding a small wheel spacer to a 10th-gen Civic, extended studs can be a sensible way to preserve more usable thread engagement. The tricky part is not the concept; it is the physical clearance needed to remove the factory stud and get the replacement into the hub.
