Best Sway Bar End Links for Honda Civic Type R
End links are a small part that most people overlook ? right up until their new sway bar feels no different from stock, or their OEM end link snaps on a track day.
What end links do and why they matter

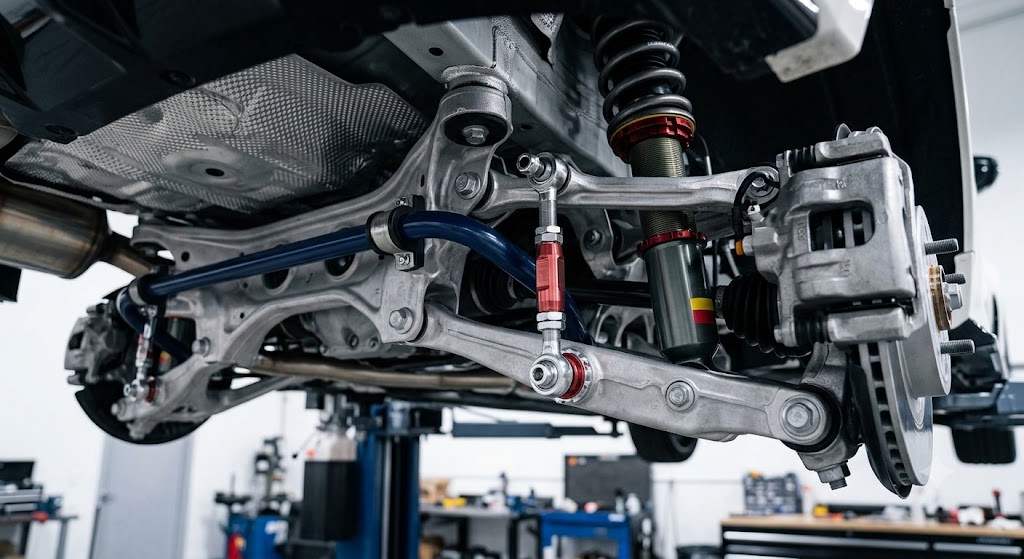

The sway bar end link is the short rod that connects the outer end of the sway bar to the suspension strut or control arm. It is the direct mechanical path through which the bar transfers roll resistance to the wheel. When the car corners, the sway bar tries to pull or push one end link while the other resists ? that tension is what creates the anti-roll effect.
OEM end links use rubber or plastic ball joints at each end. These joints have a small amount of built-in flex, which works fine with the OEM bar stiffness the car was designed around. When you fit a stiffer aftermarket bar, the increased forces can exceed what those OEM joints handle cleanly. You get compliance deflection in the link itself ? the bar is working but the joint is absorbing some of the effort before it reaches the wheel. On a track-driven car, OEM end links can crack or fail entirely under repeated loading from a stiffer bar.
The FK8 and FL5 use different end link lengths and thread specs. Always confirm your generation and axle position before ordering. Front and rear end links are also different parts ? do not assume a front link fits the rear.
OEM end links: when are they good enough?
If you are running the stock sway bar and the car stays on public roads, OEM end links are fine. Honda sized them appropriately for the factory setup. Problems start when you fit a stiffer bar and keep driving hard, or when the links age and the ball joints wear loose. Worn OEM end links clunk over bumps ? you will hear it through the cabin over rough tarmac, particularly from the rear. That clunk is the joint knocking against its travel limits.
On a Type R that has never seen a track and will not, OEM replacement links are a sensible and inexpensive choice if the current ones are worn. If you are fitting an aftermarket bar or the car sees circuit use, aftermarket adjustable end links are worth the additional cost.

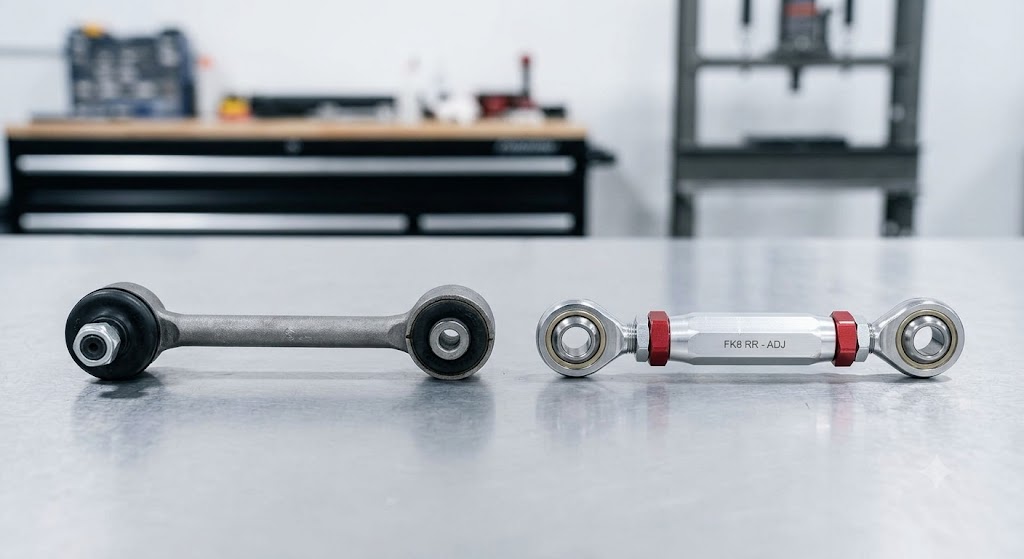

Adjustable vs fixed end links
Fixed-length end links are a direct replacement. They fit the OEM mounting points with no adjustment needed. The problem with fixed links ? both OEM and aftermarket ? is that they set the sway bar at a predetermined preload angle. If you lower the car, or if you change to a bar with a different end position, the geometry changes. A fixed link may hold the bar at an angle that puts it under pre-tension even when the car is sitting level, which biases the bar's behaviour through the corner.
Adjustable end links let you set the length so the bar sits in a neutral position at ride height. This means the bar only begins working when the suspension moves ? exactly how it is supposed to work. For a lowered Type R or one running coilovers, adjustable links are the correct choice, not an optional upgrade.
Ball joint vs rod end (rose joint) end links
Most street and fast-road end links use ball joints at each end. They accommodate the angles the bar needs to move through without binding, and they are quiet enough for daily use. Good aftermarket ball-joint end links made from steel or alloy are significantly more durable than OEM plastic-bodied units.
Rod end or rose joint end links are the track option. A rod end is a single-pivot metal joint ? it is stiffer and more precise than a ball joint, but it only articulates in one plane. For sway bar duty this is acceptable because the bar's motion is relatively constrained. The tradeoffs are: more NVH, potential for noise on rough roads, and a slightly shorter service life in very dirty environments. For a dedicated track car or a car that regularly sees circuit days, the precision gain is worth it. For a daily Type R, ball-joint links are the better long-term choice.
| End link type | Best for | Tradeoffs |
|---|---|---|
| OEM replacement (ball joint) | Stock bar, street only | Limited durability with stiffer bars; not adjustable |
| Aftermarket ball joint, fixed length | Street with mild bar upgrade | Better durability than OEM; geometry limited if lowered |
| Aftermarket ball joint, adjustable | Street / track, lowered or coilover cars | Best all-round choice for most FK8/FL5 owners |
| Rod end / rose joint, adjustable | Track-dedicated builds | NVH, tighter articulation range; needs occasional inspection |
Length and thread specification
End link length is not universal. The correct length for your Type R depends on ride height, bar position, and the specific bar you are using. If you are running stock ride height with an aftermarket bar, the bar manufacturer will usually specify the recommended link length ? follow that guidance. If you are on coilovers and the car is lowered, measure the existing OEM link installed length with the car at ride height and use that as a starting point. Adjustable links give you a correction range of typically 20?30mm, which is enough for most setups.
Thread pitch matters for the adjustment hardware. Most aftermarket adjustable links for the Type R use metric threads ? M10?"1.25 or M12?"1.25 are common. Confirm before ordering if you are sourcing links separately from your bar.
Recommended buying paths for the Type R
For most FK8 and FL5 owners running an aftermarket rear sway bar on coilovers or lowering springs: a set of adjustable ball-joint end links from a reputable suspension brand is the right call. The price difference over OEM replacement links is modest and the fitment improvement ? particularly with the bar properly neutralised at ride height ? is noticeable in how the car responds to initial steering input.
For track-only or semi-dedicated cars already on a developed coilover setup with appropriate spring rates: adjustable rod-end links are worth looking at, particularly if you want the most direct feel possible from the sway bar and do not mind occasional joint inspection.
Installation: the detail that most guides skip
Install the end links with the car at ride height and the full weight of the car on the suspension ? not with the car on a lift with the wheels hanging. This is the same rule as sway bar mount bolts. When the wheel hangs, the suspension is at full droop and the bar geometry is completely different from where it will sit while driving. Tightening the end link nuts with the car in the air sets the joint preload at a geometry it will never see on the road. Once the car drops back to ride height, the joint is twisted from the moment you drive away.
Use the final torque figures from the end link manufacturer, not OEM spec ? they may differ. Double-check that the link is not binding through the suspension's full travel range before considering the job done. Binding means the joint reaches its articulation limit during normal suspension movement, which can cause clunking or premature joint failure.
Signs your current end links need replacing
- Clunking from the rear over small bumps or road joins
- Visible cracking or splitting of the OEM plastic ball-joint housings
- Excessive play when shaking the bar by hand with the car safely supported
- The car has covered over 60,000 miles on original links and sees spirited driving
- You are fitting an aftermarket sway bar and the links are original
Frequently asked questions
Do I need to replace front and rear end links at the same time? Not necessarily ? they are independent. If only the rear bar is being upgraded or only the rear links are worn, replace the rear. Front end links are a separate job.
How long do aftermarket end links last? Ball-joint links from reputable brands should last 40,000?80,000 miles under normal use. Track-driven cars should inspect them annually or every 10 track days, whichever comes first. Rod-end links need more frequent inspection ? typically every season on a track car.
Can I install end links without a lift? Yes, with good axle stands, patience, and a breaker bar. The challenge is getting final torque applied with the suspension at ride height. A floor jack under the hub can help position the wheel correctly for the final torque step.
Will changing end links affect my alignment? The links themselves do not change wheel alignment geometry. But if you are also fitting a new sway bar or disturbing other suspension components at the same time, an alignment check afterwards is sensible.
